HOLANG Modular Nitrogen Generator: PSA Nitrogen Production – Safe & Space-Efficient

4 days ago

Modular Nitrogen Generator：
As the latest generation independently developed by HOLANG, this product adopts Pressure Swing Adsorption (PSA) technology. Using clean compressed air as the raw material, it separates nitrogen from oxygen by leveraging the different adsorption capacities of carbon molecular sieves under pressure, thereby producing nitrogen of the required purity. It also integrates the advantages of membrane separation technology, combining excellent nitrogen quality with plug-and-play convenience, making it highly favored by customers.

Pressure Swing Adsorption (PSA) – Working Principle：

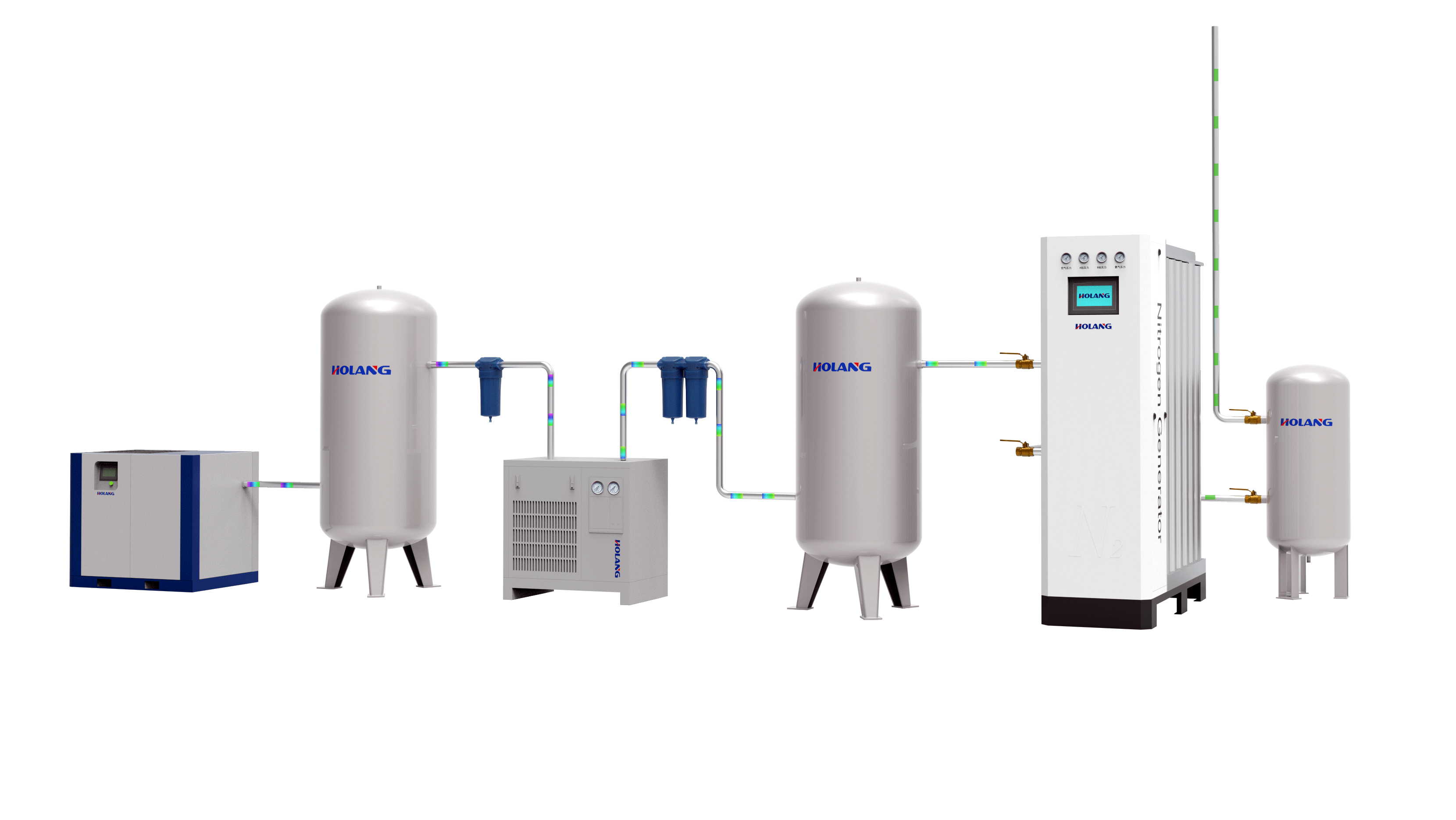

Using the modular nitrogen generator as an example (see schematic diagram below):

PSA (Pressure Swing Adsorption) technology is employed, utilizing clean air as the raw material and high-quality carbon molecular sieves (CMS) as the adsorbent. By alternately pressurizing for adsorption and depressurizing for desorption in a cyclic process, continuous nitrogen generation is achieved. Meanwhile, the system absorbs the benefits of membrane separation, offering high-purity nitrogen output with plug-and-play simplicity.

Key Product Advantages：

1. High Reliability

  • Proven and mature technology
  • High-end system configuration ensures long-term stable operation
  • Optimized design guarantees excellent nitrogen quality

2. Convenience & Simplicity

  • Compact structure minimizes footprint
  • Easily connects to existing compressed air systems
  • Plug-and-play, quick to deploy

3. Cost Efficiency

  • Supports 24/7 continuous nitrogen supply
  • Significantly reduces operational costs
  • Eliminates safety risks of high-pressure cylinders or liquid nitrogen tanks

4. Flexible Scalability

  • Modular adsorber design reduces space requirements
  • Expand CMS modules on demand to boost capacity
  • Multiple units can be connected in parallel for easy system expansion



Product Models:

Kind Reminder:

  1. Reference working condition: Ambient temperature 20~25℃, working pressure 0.7MPa;

  2. For other conditions, parameters must be adjusted accordingly — please contact HOLANG for details;

  3. Inlet air quality must comply with ISO 8573-1:2010 standards;

  4. Specifications are subject to change due to technical improvements without prior notice.
