NPL
NPL

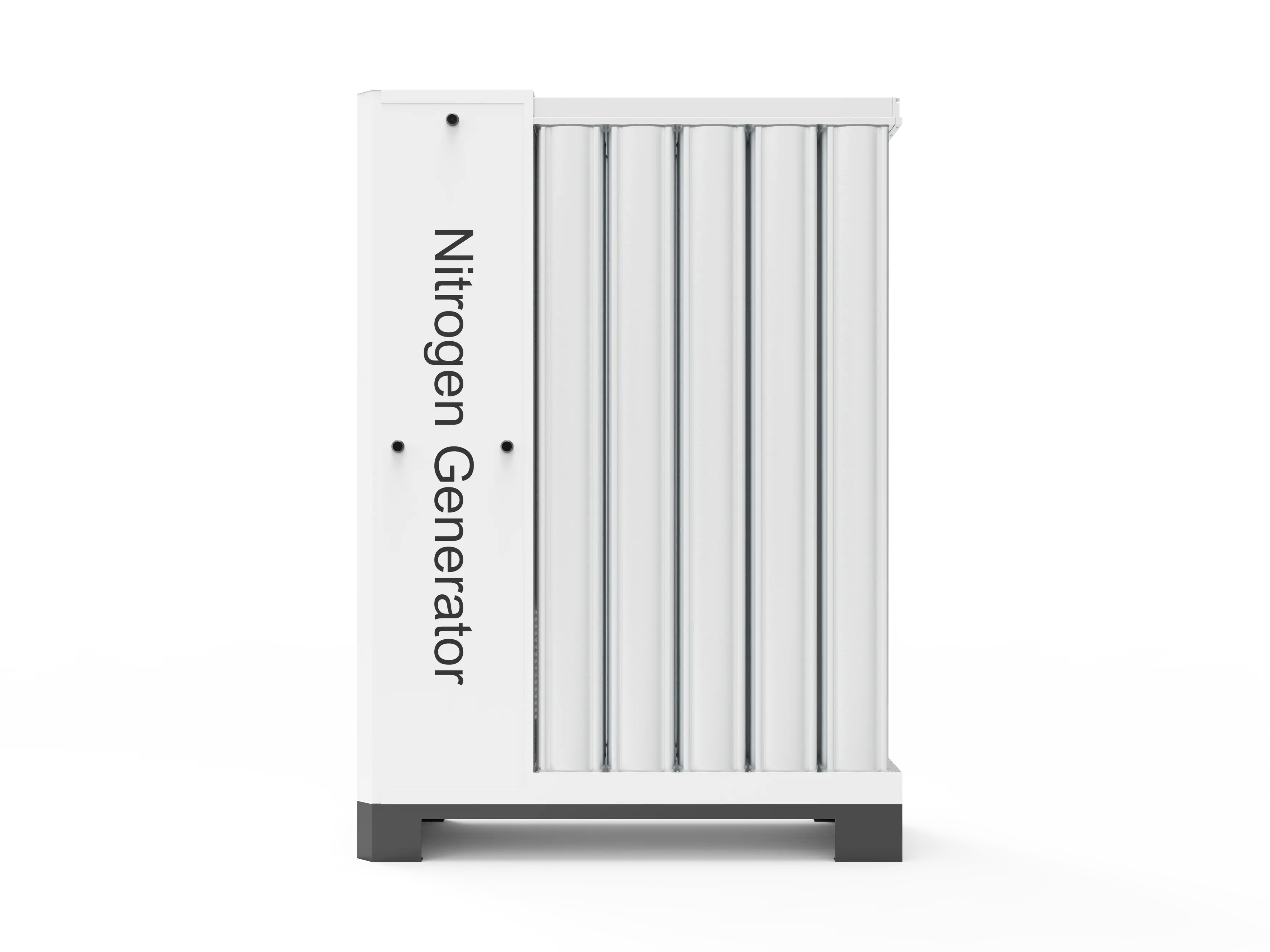

The NPL Series is a new generation of modular nitrogen generators independently developed by HOLANG. Featuring a unique design concept and advanced energy-saving technology, it helps enterprises reduce costs and improve efficiency. Utilizing Pressure Swing Adsorption (PSA) technology and a high-efficiency filtration system, the NPL Series delivers a stable and continuous supply of high-quality nitrogen with purity levels up to 99.999%.
FEATURE
  • The nitrogen purity can be adjusted95%~99.999% nitrogen purity can be selected on demand
  • Low cost of nitrogenOn-site nitrogen production, out of the box, provides a continuous, efficient and economical source of nitrogenavoid recharging and shipping costs;Reduce long-term operating costs by avoiding dependence on external suppliers.
  • High degree of automationTouch-screen motion intelligent control operation panel, easy to operate.
  • Small footprint, save more space
  • Extensible design, easy to expand and maintainIndependent module, easy to extract, easy to replace, does not affect the performance of the equipment after replacement, operation and maintenance costs are reduced; Maximum use of easy disassembly connection technology, later troubleshooting is easy.
  • Safety, energy saving and high efficiencyCan effectively avoid high pressure gas cylinder, low pressure liquid nitrogen storage tank and other safety hazards; Closed-loop monitoring of inlet and outlet gas pressure, flow rate and purity, abnormal alarm function, and mechanical safety valve to ensure safe use; The equipment is equipped with an energy saving mode, which can adjust and set the purity and flow rate of nitrogen as required.

  • Air intake requirementsMeets ISO 8573-1:2010 requirements
  • Compressed air pressure0.7-1.0MPa
  • Nitrogen outlet pressure0.6-0.9MPa
  • Operating Temperature5-40
  • Max Altitude:≤2000m
  • Power100W
  • Supply voltage210-240V /50-60Hz
