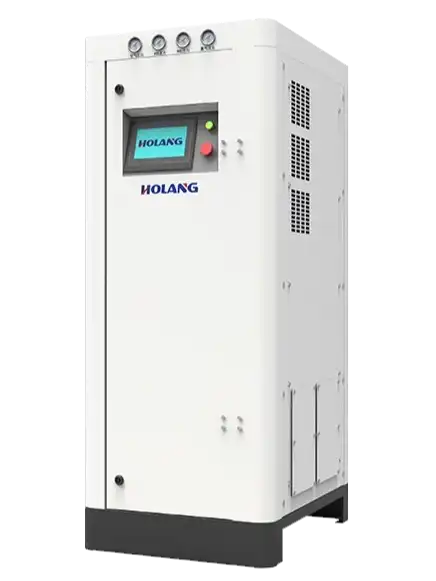

NPA Series

The NPA Series nitrogen generator is an all-in-one solution specifically designed for laboratories and other low gas consumption scenarios without an existing compressed air source. It features a highly integrated design that combines an air compressor, dryer, and nitrogen generator into a single unit. Utilizing PSA (Pressure Swing Adsorption) technology, it provides a stable and continuous supply of high-purity nitrogen up to 99.999%, ensuring reliable and consistent performance.

FEATURE

The nitrogen purity can be adjusted：95%~99.999% nitrogen purity can be selected on demand
Low cost of nitrogen：On-site nitrogen production, out of the box, provides a continuous, efficient and economical source of nitrogen，avoid recharging and shipping costs;Reduce long-term operating costs by avoiding dependence on external suppliers.
High degree of automation：Touch-screen motion intelligent control operation panel, easy to operate.
Small footprint, save more space
Extensible design, easy to expand and maintain：Independent module, easy to extract, easy to replace, does not affect the performance of the equipment after replacement, operation and maintenance costs are reduced; Maximum use of easy disassembly connection technology, later troubleshooting is easy.
Safety, energy saving and high efficiency：Can effectively avoid high pressure gas cylinder, low pressure liquid nitrogen storage tank and other safety hazards; Closed-loop monitoring of inlet and outlet gas pressure, flow rate and purity, abnormal alarm function, and mechanical safety valve to ensure safe use; The equipment is equipped with an energy saving mode, which can adjust and set the purity and flow rate of nitrogen as required.

Model：NPA10
Technology：PSA
Nitrogen flow：10~45L/min
Nitrogen Purity：96~99.999%
Nitrogen outlet pressure：6bar（87psi）
Operating Temperature：5~40℃（41~105℉）
Max Altitude：≤2000m
Noise Level：59±3dB@1m
Size (LxWxH)：787x630x1570mm（31x24.8x61.8“）
Weight：198kg（435.6lbs）
Supply voltage ：210~240V，50/60Hz
Power：2.5kW
Air compressor：Built-in
Options：① Intelligent cloud platform, mobile online control and monitoring；② Maintenance reminder；③ Equipped with moving wheel
Specification ISO9001：2015，CE
